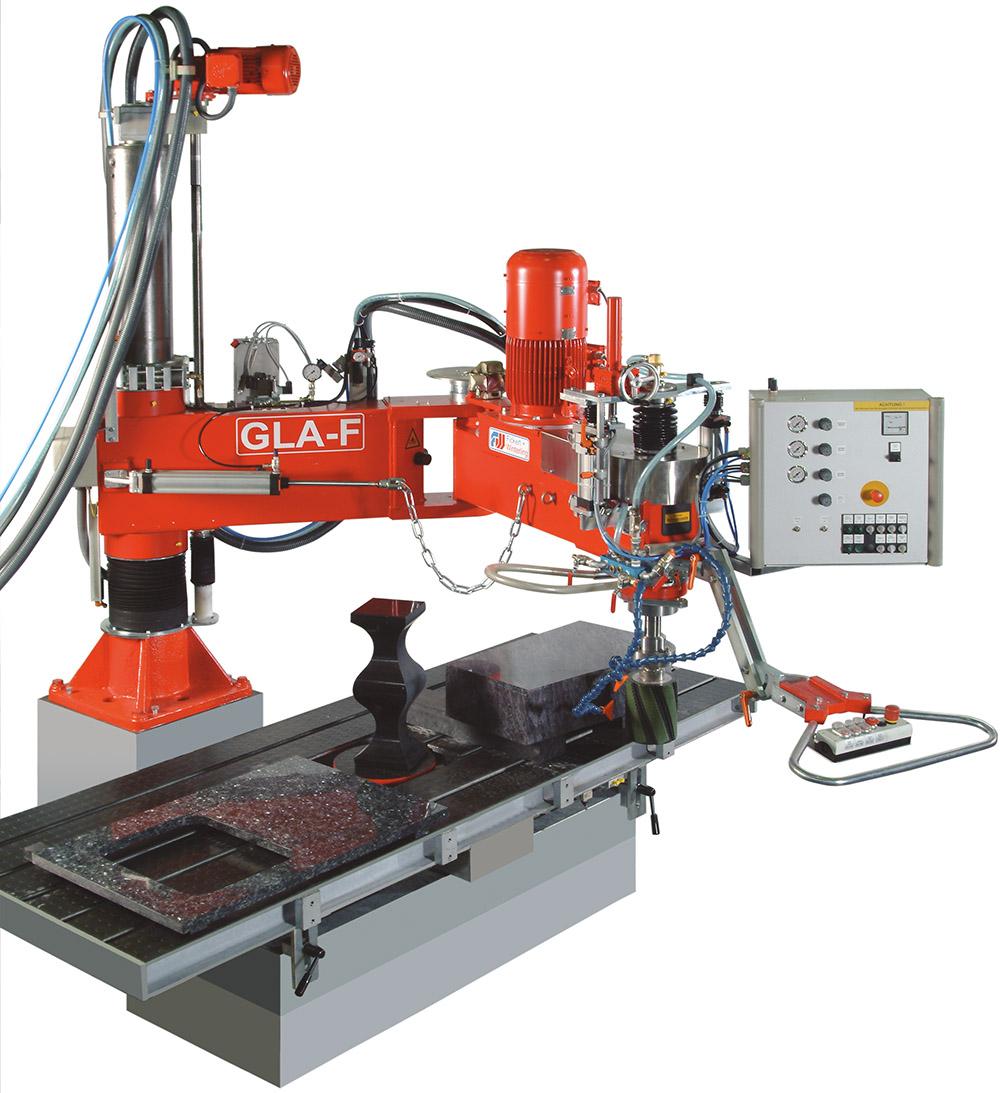

GLA-F Radial Arm Grinding and Polishing Machine. Universal machine for memorial stones / vanity or kitchen tops

The content is not available.
Please allow cookies by clicking on Accept in the banner.

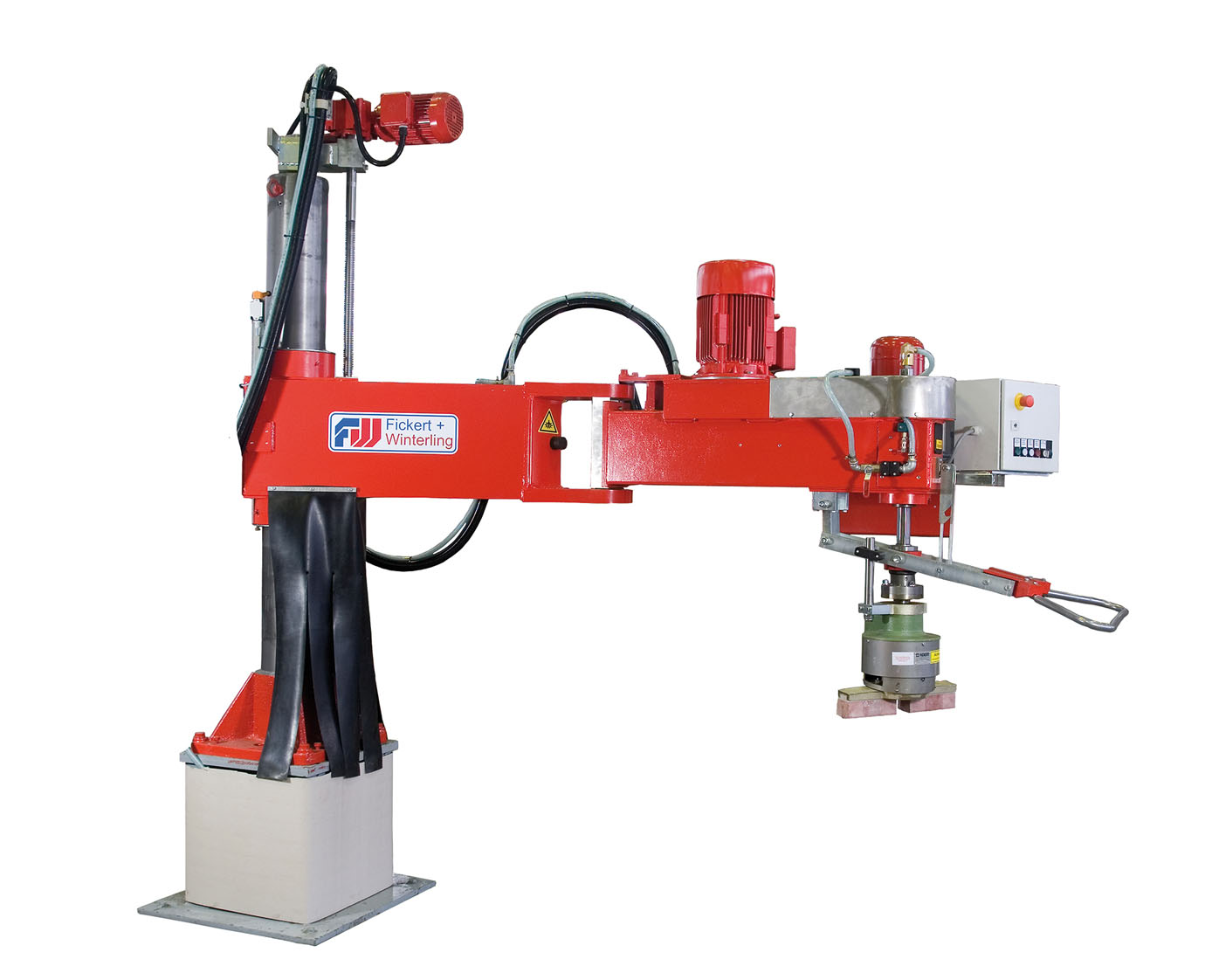

The GLA-F radial arm grinding and polishing machine is a versatile machine – based on a robust machine design suitable for the production of memorial stones from pre-shaped sawn slabs, and extended for the production of exclusive interior decorat, on items like vanity or kitchen tops. The GLA-F can be used for all sawing, milling, grinding, polishing and drilling jobs on surfaces or edges. This versatile machine saves both space and money. Easy machine handling, high performance and a proven record of realiability are the convincing features of our GLA-F. The GLA-F comes with a universal tool-changing system with bayonet attachment to allow for easy adaption to any commercially available tooling system.

The standard machine version includes:

  • Sturdy, vibration-free column from cast iron, with bellows
  • Hydraulic locking of arm joints
  • Pneumatic pressure cylinder for radial arm
  • Hardened and ground spline grinding shaft
  • Pneumatic polishing pressure, with separately adjustable pressure and counter pressure
  • End stop for accurate grinding spindle positioning
  • Speed of grinding spindle adjustable from 200-2,500rpm, with high torque for larger grinding heads
  • Adjustable guide handle

Optional features:

  • Side grinding unit
  • High-speed sprndle with speeds up to 10,000rpm
  • Customized working tables

Technical data

  • Column: Cast iron, D=210 mm, mounted on base Swivel range approx. 360°
  • Radial arms: Rigid steel profile construction
  • Working range 2 x 1,100 mm
  • Optional: 2 x 1,300 mm
  • Height adjustment 750 mm
  • Working spindle: Hardened and ground spline shaft with central water supply, Pneumatic strike 125 mm
  • Working table: 1,500 mm – 2,500 mm x 1,000 mm
  • tationary or tilting
  • Optional: pneumatic lifting plate
  • Power supply: 400V/50Hz, 10kVA
  • Air supply: R1/2 “, 8 bars, 40l/min
  • Watersupply: R3/4“, 3 bars, 20l/min
  • Weight: 1,100 kg

Download PDF GLA_F
