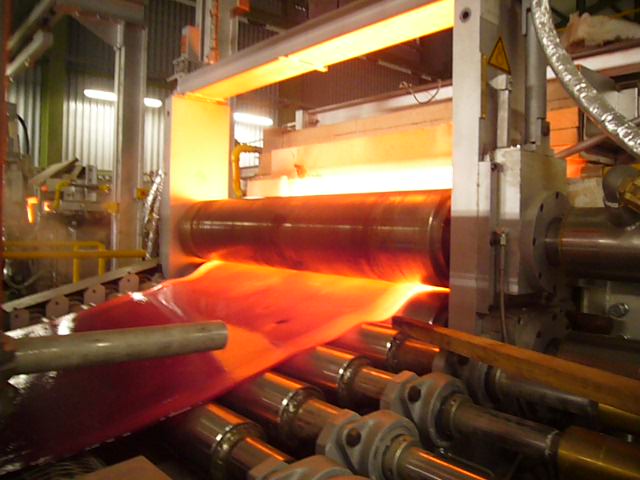

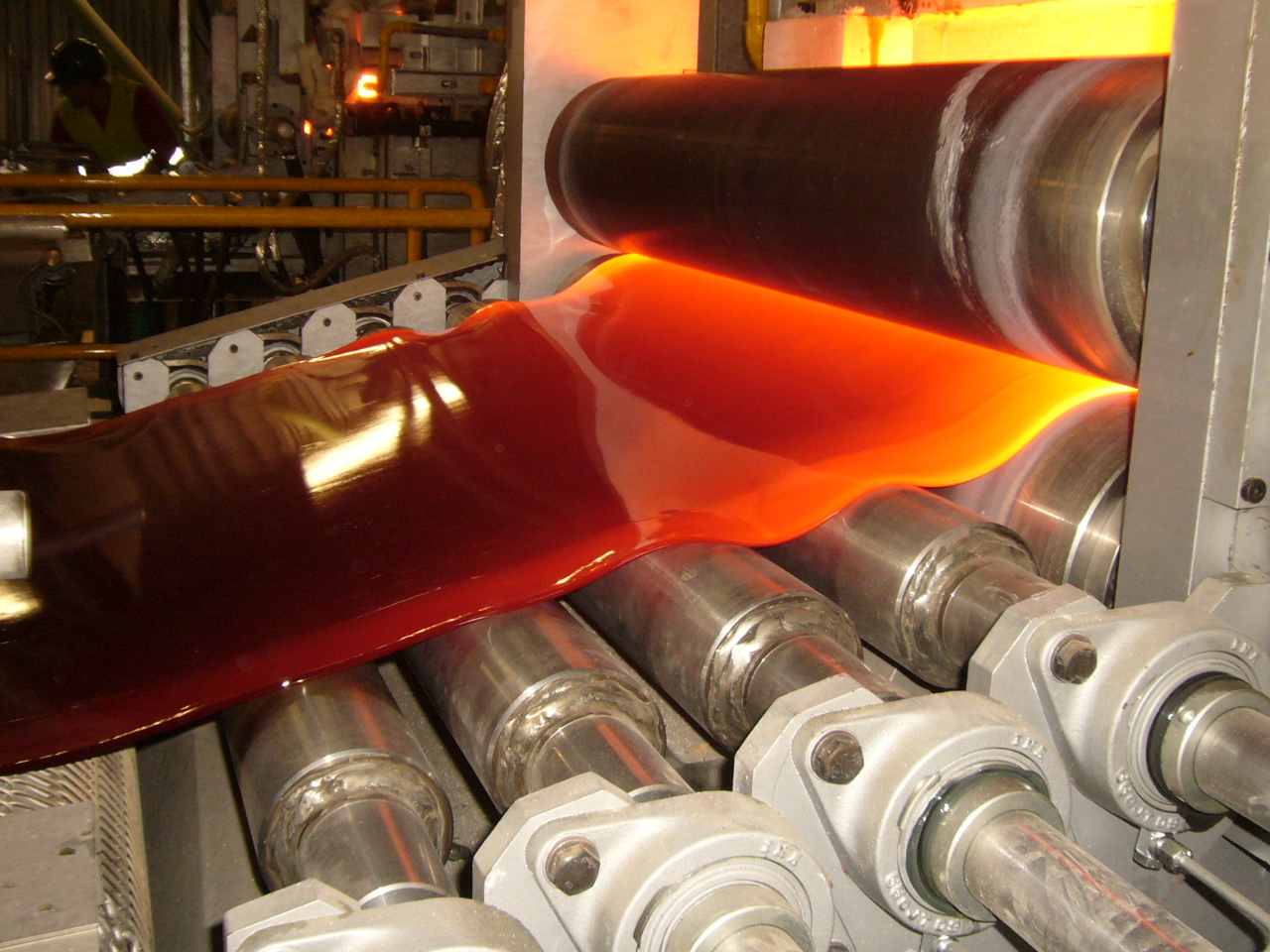

Cullet glass rolling machine KWM-C
The Cullet-Glass rolling machine KWM-C consists of:
- Rolling machine
- Transport belt with fritting equipment
- Crusher unit
This set up is used for foam glass production & can be used for several other products, which require cullets as a preliminary product.
The line serves for continuous cullet glass production. High efficiency is guaranteed by the sturdy construction and the smooth, precise operation.
We realize outputs from 30 to 120 tpd. Glass ribbon widths from 600 – 2.400 mm are available. A wide range of adjustment possibilities enables the adaptation of the cullet glass rolling machine to various feeder conditions.
Technical data:
| Glass product: | Cullet glass |
| Output production line: | 30-120 tpd |
| Gross ribbon width: | 600-2400 mm |
| Diameter of main rollers: | 200-240 mm |
| Glass thickness: | 3,0-8,0 mm |
| Rolling velocity: | 0,4-10 m/ |
| Pressure unit: | 1,2-2,2 tons per side |
| Drive units: | AC-motors with encoder and reduction gear |
Electric control and control unit
| SIEMENS S7/300 control unit |
| SEW frequency controller |
| SIEMENS touch Color-Comfort-Panel |
| Stand-alone stand with three Emergency off buttons |
Various control opportunities
| Variable speed control |
| Transport speed adaptions collectively or individuell |
| Speed adaption for different main roller diameters |
| Memory for up to 50 different glassprocessing parameters. |
| Motorized or manual pressure unit for stable glass thickness production |
Additional features
| Central lubrication system – for all roller bearings |
| Carriage drive to drive the machine in working position |
| Measurement technology |
| Process data acquisition (Option) |
