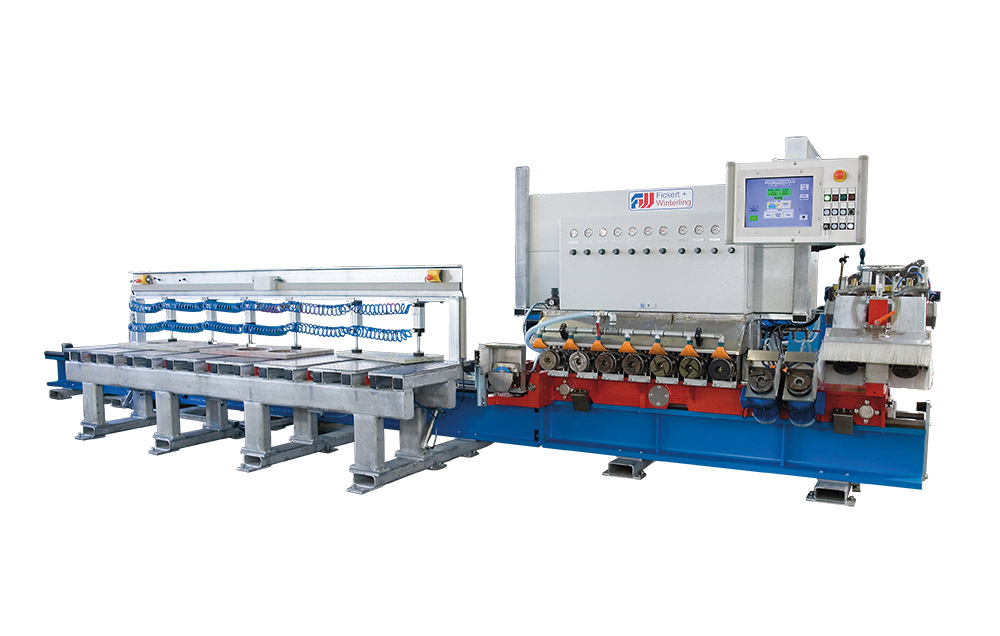

Edge grinding machine KSA 722

Precision stone-working has become still more efficient Suitable for granite and marble 2 – 6/8 cm Edge.
Grinding Machine KSA 722
An investment in this time-efficient, labour-saving, material-friendly and wear resistant type of machine will already pay off after a short while.

This stone-working machine is the perfect example for:

  • Time savings achieved by maximun speed for idle travels.
  • Avoids unnecessary waiting time.
  • Double water supply both from outside as well as centrally through the working shaft, this means an uniform grinding result and more shine.
  • Ultimate precision pressure control between 0 – 5 bar will extend the life of diamond tools and keep follow-up cost down

Additional convincing features:

  • Preselection of feed travel for granite working will reduce wear. Automatic adjustment prevents machine overload and guarantees high shape accuracy of the tool.
  • Chamfer carriages with preset height for optimum machining quality.
  • Water groove carriage of continuous or programmecontrolled hidden grooves.

Technology in detail

  • Heavy-weight, low vibration, self-supporting base frame, galvanized.
  • Size of table 3300 x 750 mm, galvanized, covered with nepped rubber mat.
  • For separate operation: – Integrated, lifting allside roller bars. – Pneumatically swivelled stop bar. – Clamping bridge with 10 longitudinally movable compressed air cylinders.
  • Automatic recognition of length of stone, without contact during the grinding process.

Quite certainly the right programme

Easy handling: 3 basic programmes: Single and follow-up run as well as multible runs per segment. In addition there is a freely programmable control. Automatic repetition with immediate start. Display in clear text – this makes fault diagnosis and trouble-shooting easy. Indicating of worn abrasives and monitoring signals for the different processes. Correction of feed without programme intervention.

Download PDF KSA_722_KANTENSCHLEIFAUTOMAT
