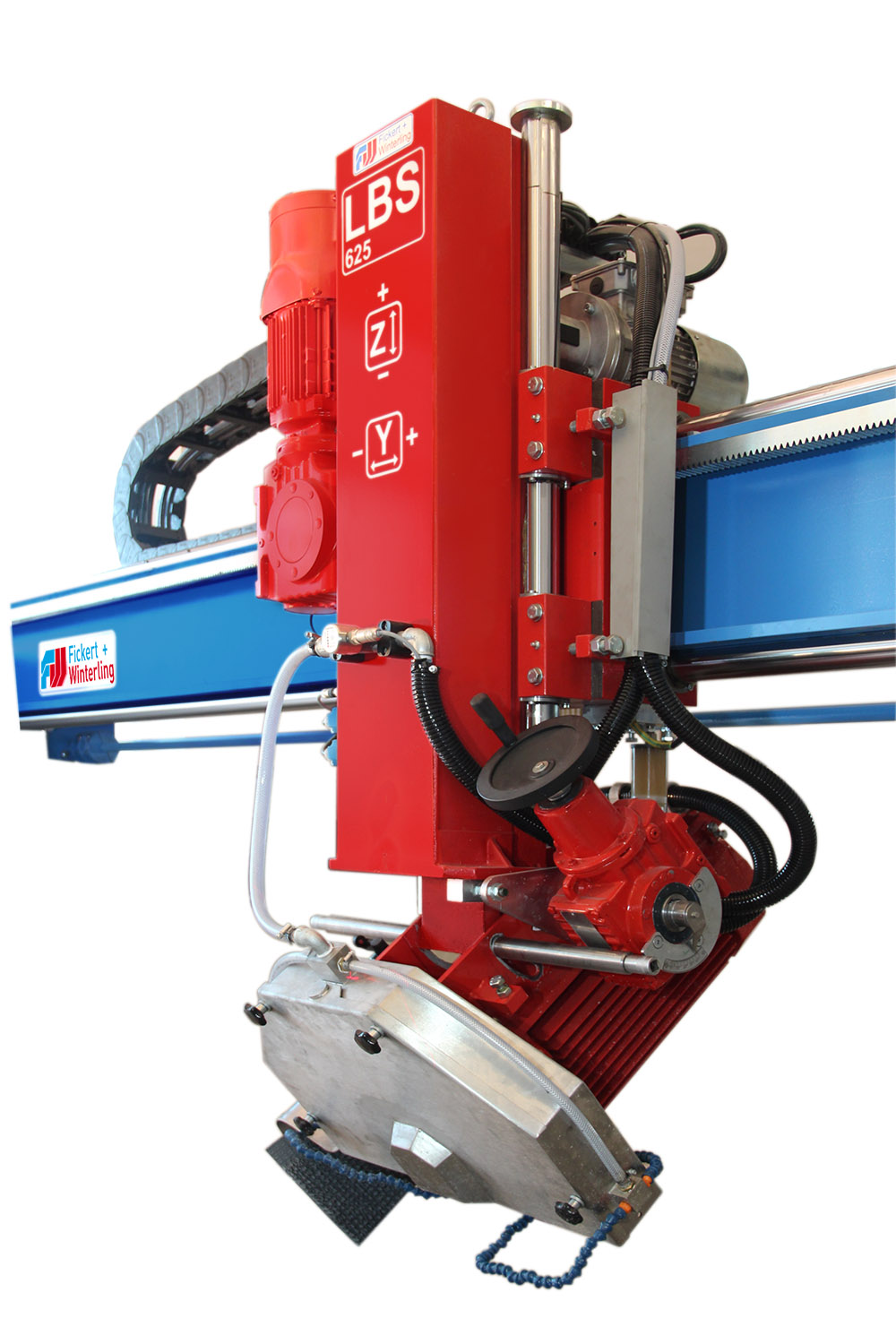

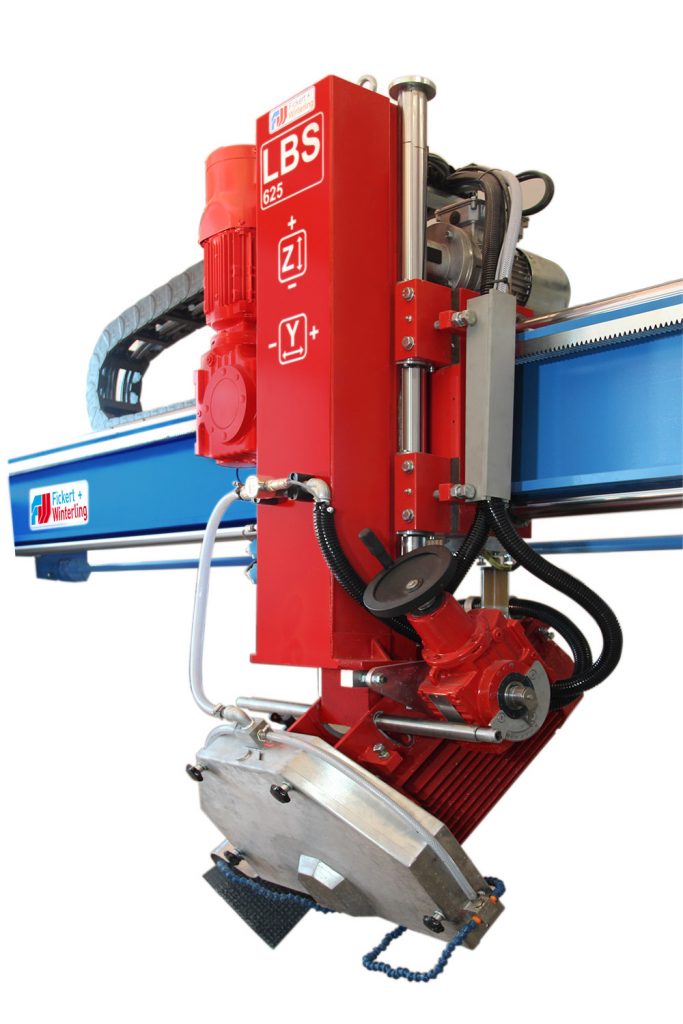

Bridge Cutting Saw LBS

Bridge Cutting Saw LBS

Stone processing is constantly developing. Fickert + Winterling drives this progress ahead and builds machines that are impressivley reliable, robust und cost effective, the bridge cutting saw LBS combines proven components with intelligent innovations, providing economic solutions for every user.

Technology in detail

  • Sturdy machine bridge from steel
  • Rise and fall rest and cross carriage from low vibration cast iron
  • Wear resistant circular slide bearings (5 years‘ warranty)
  • User friendly, safe operation
  • PLC control
  • Saw blades from 300 to 800 mm
  • LBS 625 with saw blades swivelling 0-45°
  • Turning table TML 3.300 x 1.800 mm, lockable in any angle
  • Capacity 10 t.

The circular slide bearing system which was adapted from the larger PFE-type machinery and the cast production of the rise and fall rest and cross carriage provide optimal vibration dampening for cut precision, high cutting power and long tool service life.

Technical data (standard machine)
(Data in brackets for LBS 800)

  • Saw blade diameter 625 (800) mm
  • Bridge displacement 3.500 mm
  • Cross-carriage displacement 3.800 mm
  • Max. cutting depth 207 (320) mm
  • Saw advancement speed 0,2 – 10 m/min
  • Height adjustment 400 (550) mm
  • Main motor power 11 (15) kw
  • Main motor speed 960 or 1.450 min-1
  • Weight approx. 2.000 kg
  • Dimensions 6.100 x 4.500 x 2.700 mm
  • Equipment charactersistics / Control functions

Already included in the basic equipment

  • Full and step-by-step cut automation
  • Through cutting automation = last cut in reverse
  • Guiding laser Water valve and flowmonitor

Additional functions and special equipment:

  • Touchscreen controls with multiple datasets and saw blades
  • Turntable controls, e.g. for individual stair treads
  • Network link
  • Automated profile cutting

Download PDF LBS_BRUECKENSAEGE
