Diamond contour wire saw

Diamond contour wire saw

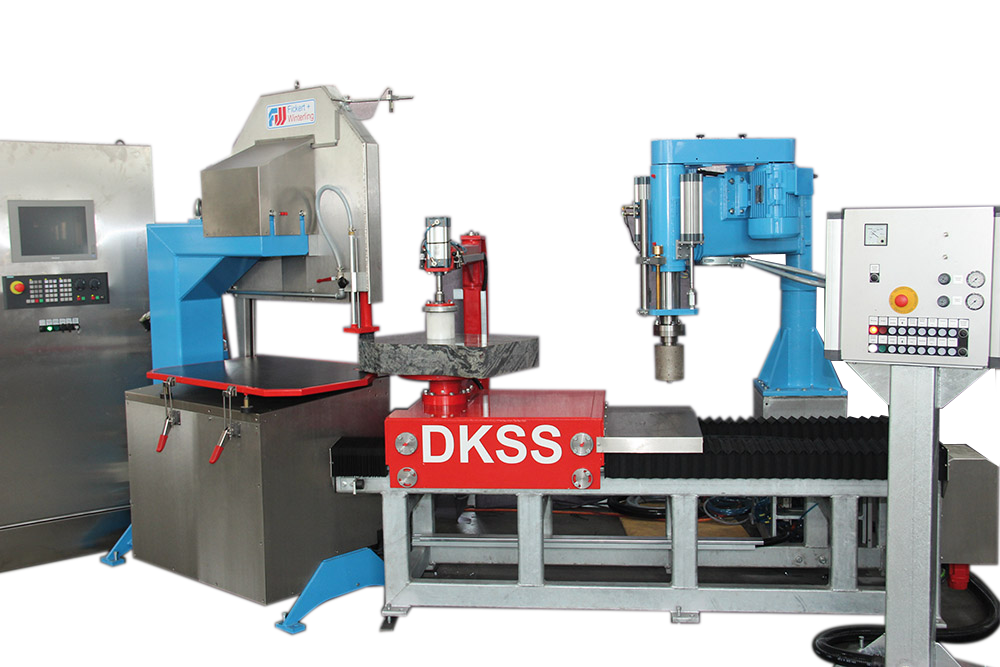

DKSS – SP Contour Wire Saw with grinding and polishing unit

The content is not available.
Please allow cookies by clicking on Accept in the banner.

The machine is specially designed for small and medium sized mason companys. Thereby placing the greatest value on a minimum space requirement and optimal handling of the machine.

Technology in detail

Saw

  • Wirewheel diameter: 850 mm (dw = 830 mm)
  • Wire diameter: 8 mm bzw. 10 mm
  • Wire tension from: 2.000 N to 3.500 N
  • Main motor 5,5 kW
  • Cutting speed: 26 m/s – 40 m/s
  • Max processing: Diagonal 1.850 mm
  • Workpiece: Height 270 mm

Grinding Unit

  • Grinding cylinder: Ø 80 – Ø 150 mm
  • Height adjustment: 150 mm
  • Grinding Motor: 4,0 kW

Turntable

  • Diameter: 400 mm
  • Drive: 0,37 kW
  • Feedrate: 10 mm/min
  • Traversing distance: 1.200 mm
  • Rapid max: 5.000 mm/min

Workingpiece clamping device

  • Holder force: 1.700 N (bei 6 bar)
  • Stroke: 200 mm

Connection value

  • Electrical connection: 8 kW/400 V
  • Compressed air: 6 bar
  • Water supply: 3 bar

Download PDF DKSS_SP
