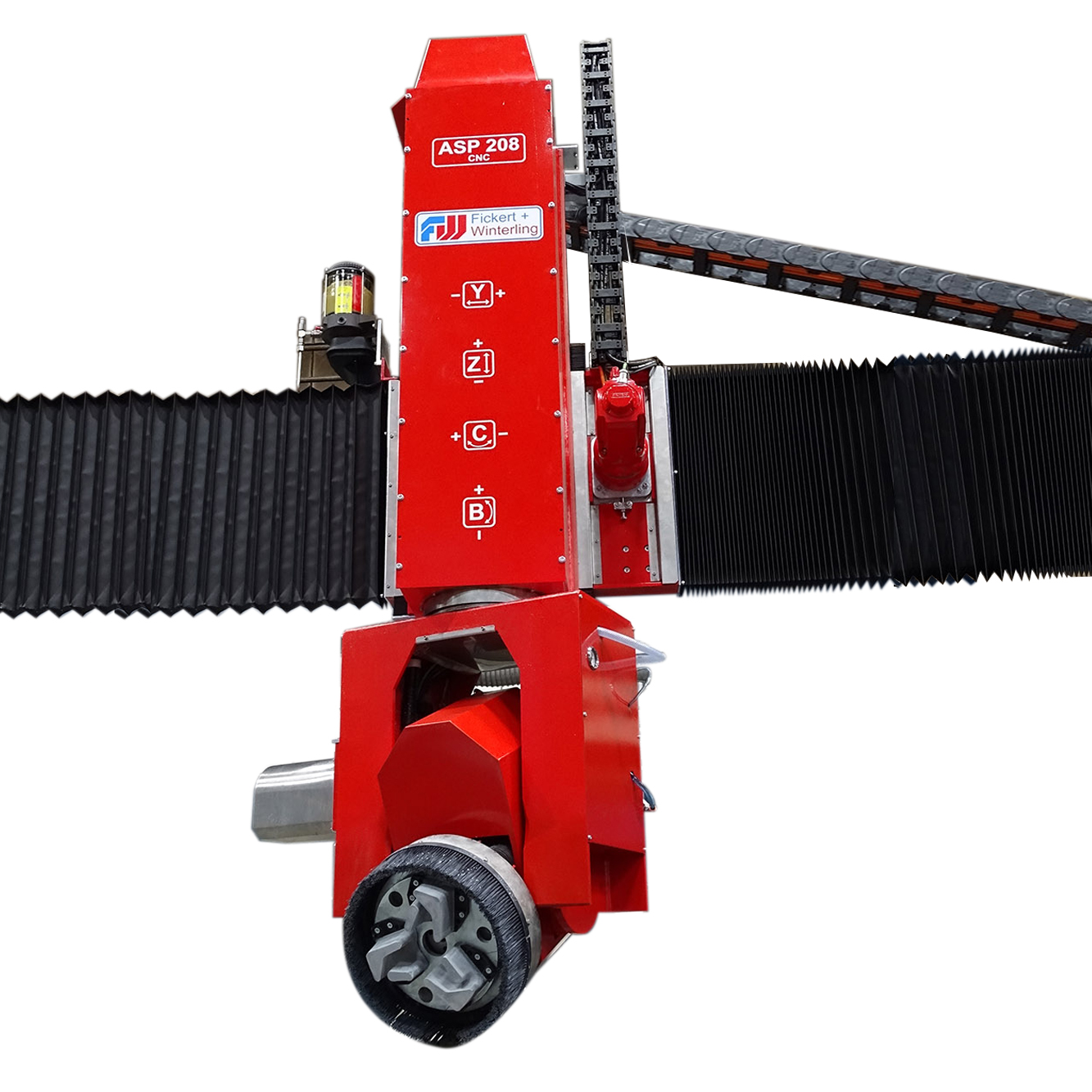

CNC 5 axis grinding and polishing machine ASP 208 CNC

Stone processing is constantly developing. Fickert + Winterling drives this progress ahead and builds machines that are impressively reliable, robust and cost effective. The ASP 208 CNC combines proven components with intelligent innovations, providing economic solutions for every user.

Technology in detail

  • Solid steel bridge, vertical and cross carriage support in strong welding construction
  • Wear resistant, overdimensioned ball cage guiding, covered with bellows
  • Highly precise and very dynamic components for high speed coordination drive
  • Intelligent control for individual applications
  • Automatie intermittent lubrication
  • CNC controlled grinding machine for horizontal and vertical surface grinding with automatically tool changing system
  • Drive with Siemens servo motors [Absolute encoders)
  • Bridge and slide rest displacement 0 – 30 m/min
  • Slide rest turnirig [C-axis)
  • Rotation angle± 185°
  • Rotation speed max. 60°/s
  • Grinding motor pivoting [B-axis)
  • Angle of rotation -1°/+91°
  • Grinding motor 7,5 kW adjustable 350 – 800 1 /min
  • Siemens SINUMERIK 840 DSL control with 15″ Touch panel

Protection of the machine according to machinery directive

2006/42 EG

Custom made grinding and polishing machines

All machines from Fickert + Winterling are individually

designed for the user and optimize productivity.

Download PDF ASP_208_CNC
