Stone processing with a mirror finish Surface grinding and polishing machine, designed to met the most stringent quality and performance requirements for granite, marble and other materials. Precision stone working, flexibility in the production process, operational safety and minimum labour input – these are the advantages in a nutshell. Leave the responsibility to the machine. lt will produce the best results by following its own programm. The ASP 206 Grinding and Polishing Machine combines proven components with intelligent innovations, providing economic solutions for every user.

Technology in detail

  • Extremely robust design with proven components

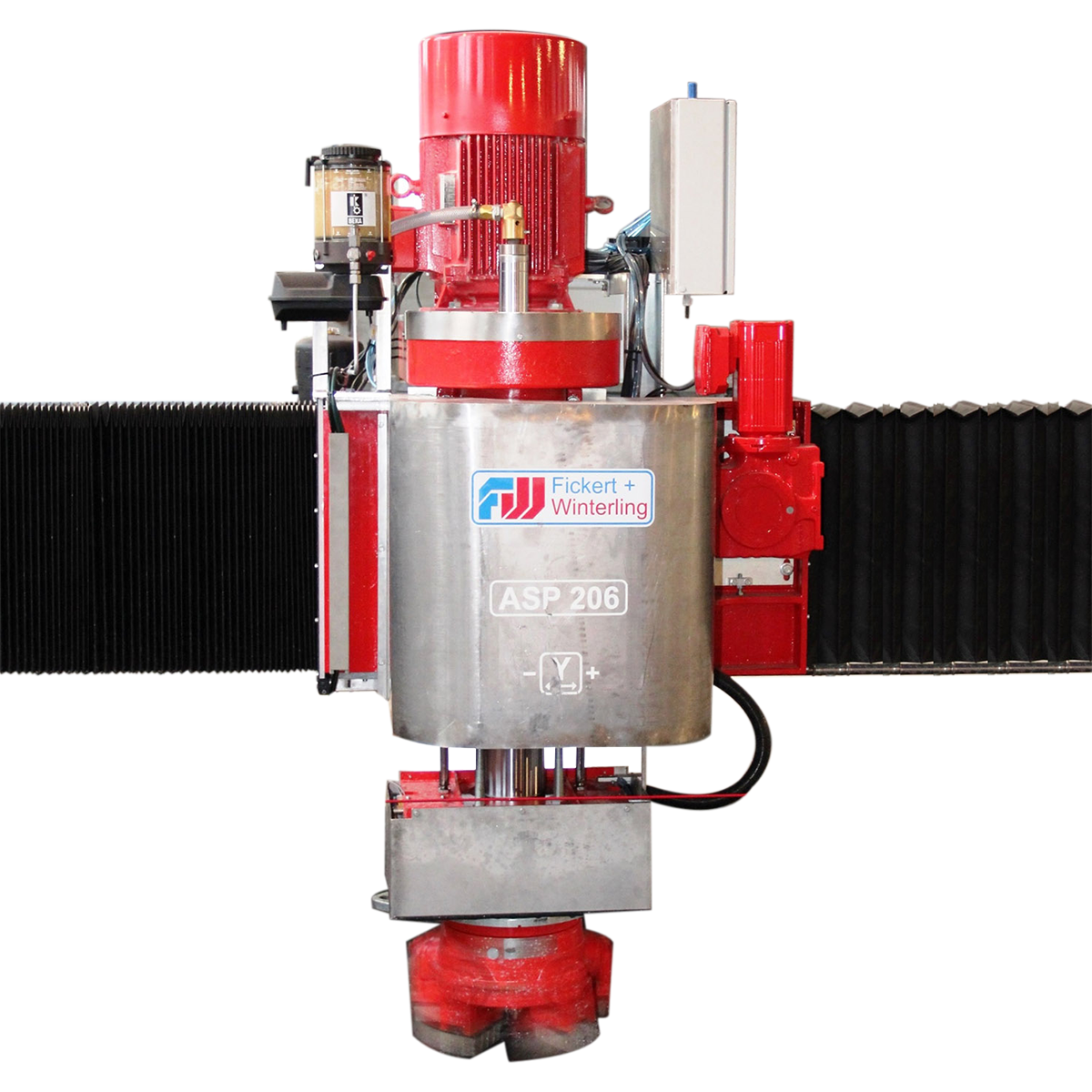

  • Grey cast iron grinding carriage on circular slide bearings for precise, low-wear stone-work
  • Bridge guide on rollers for exact positioning
  • Grinding carriage with overdimensioned bearing for smooth running
  • Grinding spindle with adjustable stop for rough grinding (option) #
  • Grinding speed up to 22 m/min for high output and minimum non-productive time
  • Teach-in-system for free recognition of stone position and contour
  • 20 programmable stations for grinding heads for extended automatic operation (only ASP 206c)
  • Change of grinding heads at more than 20 m/min ensure a minimum non-productive time (ASP 206c)
  • Pneumatic lock-in of grinding heads – no safety hazards, even during power-failures
  • Stone washing programme after grinding (standard on ASP 206c)
  • Automatic intermittent lubrication

Protection of the machine according to machinery directive 2006/42 EG Custom made Grinding Machines For every size and task ASP 206a with manual grinding segment change ASP 206c with automated grinding-head change system

Technical data

  • Rails 6.000 mm
  • Grinding carriege crosswise travel 3.100 mm
  • 3.600 mm / 4.100 mm
  • Displacement speed 0,6 – 10 m/min (to 22 m/min) Height adjustment grinding spindle 250 mm
  • Grinding pressure 0 – 6 bar
  • Grinding motor power 18,5 kW
  • Rotational speed 360 min-1


Height adjustment support 400 mm Rail extension up to 50 m Grinding motor up to 30 kW Automatic change of grinding head (type ASP 206c) End stop for calibration Stone washing unit Half-portal version Point laser for recognition stone position (without water jet)

Download PDF ASP 206
